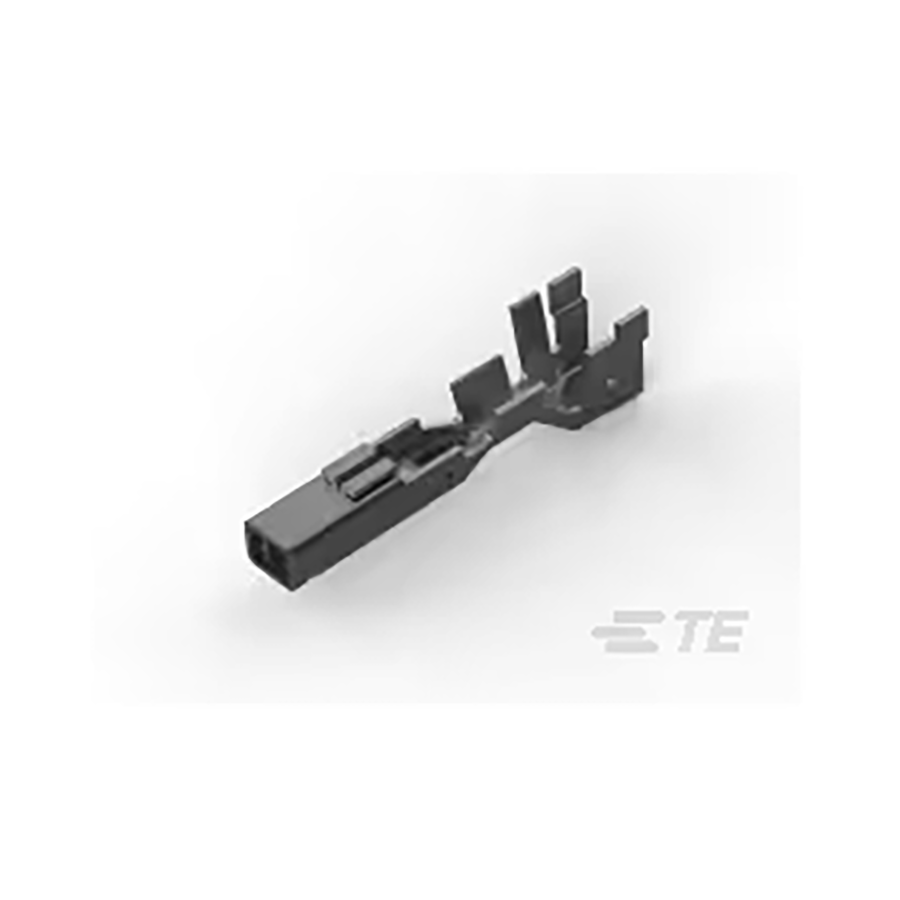

177914-1
Manufacturer:
TE Connectivity
Mfr.Part #:
177914-1
Datasheet:
Description:
Headers and Wire Housings Cable Socket
| Parameter | Value |
|---|---|
| Length | 14.2 mm |
| Termination | Crimp |
| Max Operating Temperature | |
| Min Operating Temperature | |
| Packaging | Reel |
| Voltage Rating | 300 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Pitch | |
| Current Rating | 5 A |
| Max Current Rating | 14 A |
| Orientation | Straight |
| Operating Supply Voltage | 50 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Receptacle |
| Shielding | Unshielded |
| Connector Type | Socket |
| Wire/Cable Gauge | 26 AWG to 20 AWG |
| Number of Positions | |
| Number of Rows | |
| Row Spacing | |
| Housing Material | Nylon |
| Wire/Cable Type | Discrete |
| Circuit Application | Power |
| Connector System | Wire-to-Wire |
| Contact Style | Socket |
| Contact Current Rating | 14 A |
| Wire Gauge (Max) | 26 AWG |
| Wire Gauge (Min) | 22 AWG |
| Insulation Diameter | 2.0066 mm |
| Plating Thickness | 800 nm |
| Contact Gender | Female |
| Mating Post Length | |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Contact Retention | With |
| Termination Post Length | |
| Termination Style | Crimp |
| Contact Material(Contact Finish) | Copper Alloy |
Stock: 12360
Distributors
pcbx
pcbxUnit Price$0.12524
Ext.Price$0.12524
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.12524 | $0.12524 |
| 10 | $0.06262 | $0.62620 |
| 50 | $0.04817 | $2.40850 |
| 100 | $0.03705 | $3.70500 |
| 500 | $0.03365 | $16.82500 |
| 1000 | $0.03056 | $30.56000 |
| 3000 | $0.02880 | $86.40000 |
| 5000 | $0.02715 | $135.75000 |
| 10000 | $0.02499 | $249.90000 |
| 30000 | $0.02416 | $724.80000 |
| 50000 | $0.02336 | $1168.00000 |
| 100000 | $0.02228 | $2228.00000 |
